Juno-106 3-prong grounded IEC connector wiring

Synth Repair
,
1

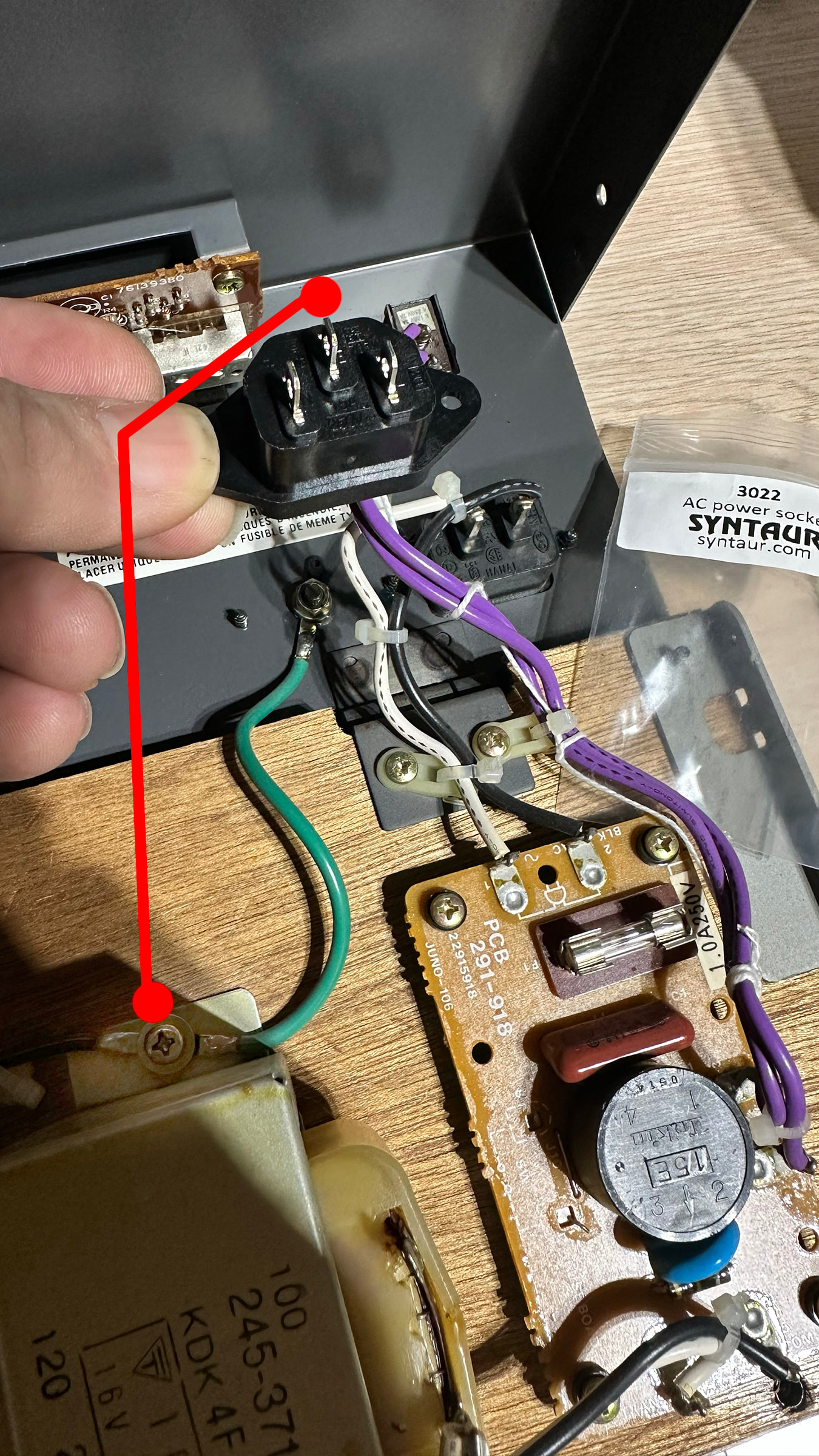

Working on my Juno-106 and lost the 2 prong power cord so I figured I update it to the 3 prong IEC socket. However I can’t find a good reliable wiring diagram. I’m assuming the left connector is the white wire and the right connector is the black? The center needs to be a green ground like the red lines in picture ? Any advice?

IMG_5335
IMG_53351350×2400 902 KB

Add tags before posting: brand + model + (optional) fault
e.g., korg, models-korg-m1, no-power
If your model isn’t listed: use models–tbd (e.g., models-korg-tbd) and post the exact model in the pinned “Request a new model tag” thread. We’ll add it and retag.
When your issue is fixed, please mark the reply that solved it (click the ✓ “Solution” on that post).

• Model & revision/OS:
• Symptoms (what changed, when):
• Tests already done (voltages, parts replaced):
• Photos / audio clips:

2

To be honest: If you have to ask this question, then you should not touch that - not to think that you would change that.

These two two-pole cables are available on eBay. Buy one and don’t put your life or the lives of others at risk.

3

Best to use a multimeter and check continuity from the mains plug pins to the connector.

4

Fanwander - If you don’t know the answer and can’t be helpful, there is no need to reply. Thanks

5

the black and white are obvious where they hook up. I was trying to get a confirmation on the best place for the ground was. directly to the chassis or to that ground going to the power transformer ground. Which is probably where I’m going to go with the ground. thanks

6

I know the answer, and I had to care for someone sitting in a wheel chair who thought he could handle these things… (good luck!)
