I acquired this keyboard as an impulse buy thinking it was worth a gamble (I really like my RD700SX which I believe has the same piano sounds but weighs a ton). The boot process does not complete with the display hanging at ‘Roland Stage Piano’. Either the memory is corrupted in which case re-flashing the OS may fix the problem, OR it needs a new main board.
But Roland no longer have the files posted to allow me to try the software option. Is that something that Syntaur can help me locate? I can make the RD300GX boot to the system update screen which is encouraging.
I would eliminate any internal connections to the main board interfering with boot up as another possibility. Pardon the AI paste below, but this looked interesting after drilling down online:
1. Test for Hard Boot-Level Modes
Before concluding it is a permanent hardware failure, attempt to force the keyboard into a lower-level boot state that bypasses the main OS partition. Turn the unit off, wait 10 seconds, and try these combinations while powering back on:
Force Update Mode: Press and hold [EDIT] while powering on. If the bootloader partition of the internal flash memory is still intact, it may bypass the frozen splash screen and show an update screen. If it does, follow the USB connection steps to update the firmware.
Force Test/Service Mode: (Common for Roland units of this era) Press and hold [DEC] and [INC] simultaneously, or [ENTER] and [EXIT] simultaneously, while flipping the power switch. If the screen changes to a grid or a version text, the board’s basic computing components are alive.
2. Disconnect Internal and External Peripherals
A boot hang is frequently caused by a hardware component failing its initial power-on self-test (POST).
External Checks: Unplug everything except the power cable. Ensure there are no USB cables, MIDI cables, headphones, or sustain pedals connected. A shorted sustain pedal or a corrupt USB ground can freeze a Roland boot cycle.
Internal Checks (Requires Opening the Unit): If you are comfortable taking the bottom or top panel off, locate the ribbon cables connecting the keys, the button boards, and the LCD screen to the main board. Unplug and securely reseat them. Oxidation or a loose ribbon cable can cause a data communication freeze that hangs the CPU. [1]
3. Check Internal Power Rail Voltage
If you or a technician opens the keyboard, use a multimeter to check the power supply board. The RD-300GX uses an internal transformer or regulator setup to distribute separate power voltages (e.g., +5V for digital logic, +12V/-12V for analog audio components). If the digital +5V or +3.3V rail has dropped too low due to a failing capacitor, the CPU will turn on the LCD screen backlight and text, but will lack the voltage stability to execute the boot code.
4. Component-Level Failure (The Motherboard)
If none of the button overrides work and reseating the cables fails, the root cause is almost certainly a failure on the main digital circuit board. This usually points to:
Corrupted Boot Flash: The actual EEPROM chip holding the firmware has suffered data corruption or chip degradation.
Failed IC/Processor: The main BGA processor chip or the associated RAM chip has failed or developed broken solder joints due to age and thermal stress.
Thanks! There are some interesting things to try there.
I’ve done some diagnostics on the main board (or ‘motherboard’ as AI has called it) including disconnecting all daughterboards via their ribbon cables, in case of a short somewhere. Boot still hangs. More interestingly I found that the USB +5V power was not been enabled and traced the suspect enable line to one of the outputs on the main processor which appears to be open circuit. My fear is that given that this processor is a Ball Grid Array type that there is a separation of the board trace from that pin on the BGA. That makes it virtually impossible to fix (or at least without great expense - I do know someone who may be able to x-ray the device to see if I am right and maybe even re-solder it, but it would be a big favour). And that would be in line with the very last sentence of your AI quote: ‘The main BGA processor chip or the associated RAM chip has failed or developed broken solder joints due to age and thermal stress.’
The RD300GX is back together and have shelved it for now. However, I will try some of those power / button press combinations to see what happens and let you know. And if I have any success with the favour I’ll also get back to you.

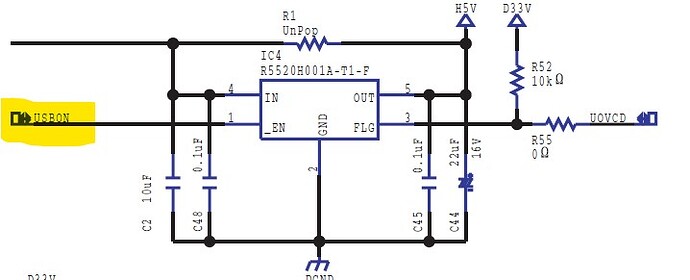

As far as I can tell the enable signal for the USB 5V supply (USBON) is floating. This signal comes directly from the proprietary Roland chip IC1 which is a Ball Grid Array device. That suggests the chip pad has become de-soldered which is apparently likely for a board that experiences thermal cycling and rough handling (as does a gigging keyboard). Question is are there other disconnections of other pins.
Fixing this is beyond my capabilities but possible for someone with experience and the right equipment - I’m currently waiting for such a colleague to try reflowing the device - it is a favour so low priority. I have my fingers crossed!
